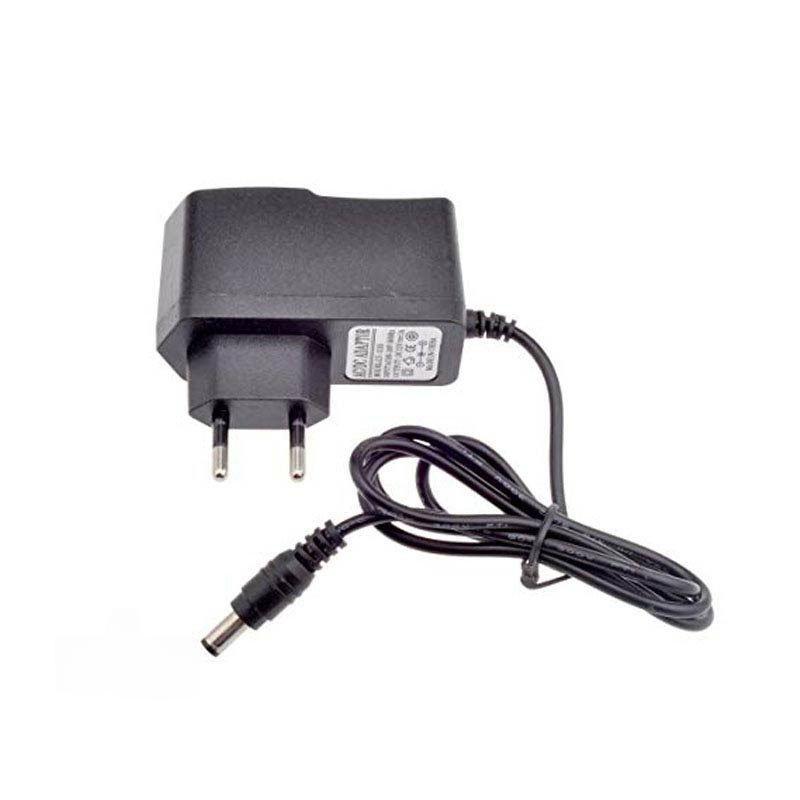

CCTV ADAPTER PS 1210B 12V 1A

Name: CCTV ADAPTER PS 1210B 12V 1A
SKU: 48741
Availability: OutOfStock

Availability:

Out of stock

Rs.900.00

or 3 X Rs.300.00 with

Out of stock

Reviews

There are no reviews yet

Add a review

CCTV ADAPTER PS 1210B 12V 1A

Rating*

0/5

* Rating is required

Your review

* Review is required

Name

* Name is required

* Email is required

Add photos or video to your review

GENERAL SPECIFICATIONS
Efficiency:	80.5% typical
Switching Frequency:	56-76K Hz.@ full load typical
Circuit Topology:	Free-running flyback circuit.
Transient Response:	Output voltage returns typical 1mS following a 25% load change
Safety Compliance:	cUL, UL, CE, GS, TUV, FCC, LPS, I.T.E. Class II, Double Insulated, indoor use
Power Density:	2.0 Watts / Cubic inch
Operating Temperature:	0 to +40°C with no derating
Storage Temperature:	-20 to +85°C
Temperature Coefficient:	0.04% /°C typical
Size	68 mm x 50 mm x 27 mm (2.7 x 2 x 1.1 inches) Desktop
Weight:	110 grams, 4 ounces (not including the cord for the desktop)
Cooling:	Free air convection
Construction:	Impact resistant thermo-plastic enclosure case

INPUT SPECIFICATION
Input Voltage:	Input Voltage: rating 100-240VAC
Input Connector:	IEC C7, two prong input socket (desktop version) USA cord included
Input Frequency:	47-63Hz.

OUTPUT SPECIFICATION
Output Voltage:	12.0 Volts
Output Current:	1.0 Amps
Output Wattage:	12 Watts typical
Line Regulation:	0.1% typical
Load Regulation:	±2-3% typical
Noise & Ripple:	1.0% typical peak to peak
Over Voltage Protection (OVP):	Built-in, By Zener diode clamping
Overload Protection (OLP)	Fully protected against output overload or short circuit. OLP is set at about 120-150% of the rated continous output
