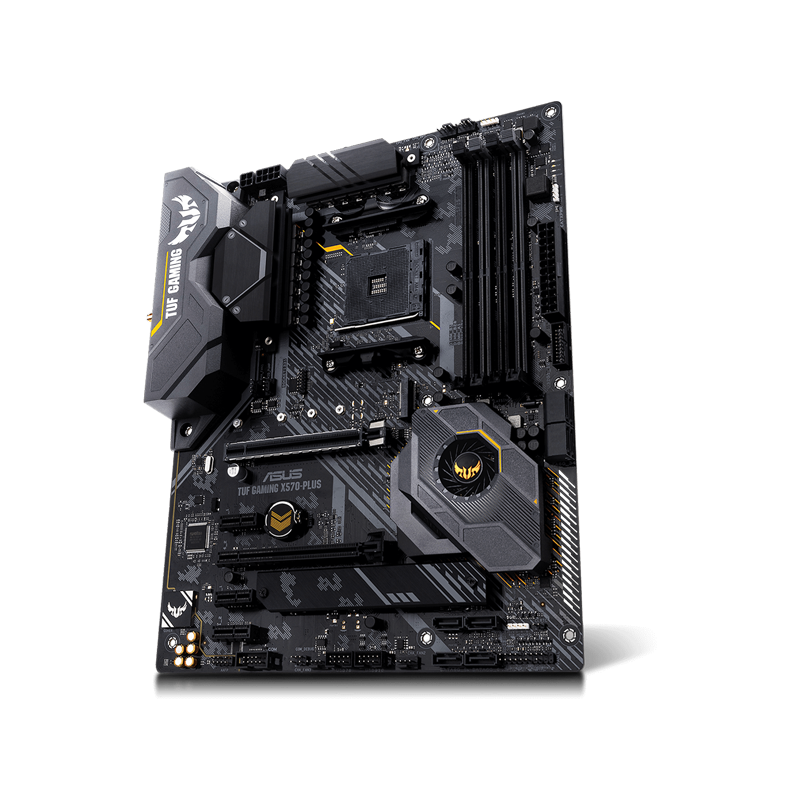

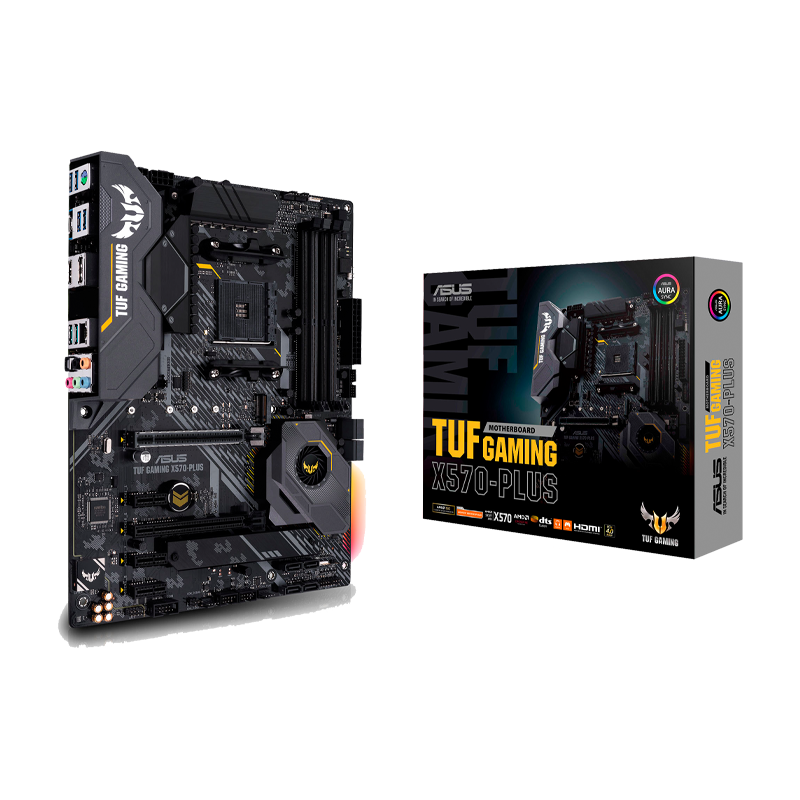

DESKTOP MOTHERBOARD – ASUS TUF GAMING X570-PLUS (3y)

AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics /3rd Gen AMD Ryzen™ Processors

AMD X570

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors

Multi-VGA output support : HDMI/DisplayPort ports

– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz

– Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors


Supports AMD CrossFireX™ Technology

3rd Gen AMD Ryzen™ Processors


1 x PCIe 4.0 x16 (x16 mode)


2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors


1 x PCIe 3.0 x16 (x16 mode)


2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors


1 x PCIe 3.0/2.0 x16 (x8 mode)


AMD X570 chipset


1 x PCIe 4.0 x16 (max at x4 mode)

3 x PCIe 4.0 x1

3rd Gen AMD Ryzen™ Processors :


1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support


2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :


1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support


AMD X570 chipset :


1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

8 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Realtek® L8200A

ASUS Turbo LAN Utility

TUF LANGuard

Realtek® ALC S1200A 8-Channel High Definition Audio CODEC


Audio Feature :


– Exclusive DTS Custom for GAMING Headsets.

– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

– Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors :


4 x USB 3.2 Gen 1 port(s) (4 at back panel, )


AMD X570 chipset :


3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C

^®

)


AMD X570 chipset :


2 x USB 3.2 Gen 1 port(s) (2 at mid-board)


AMD X570 chipset :


4 x USB 2.0 port(s) (4 at mid-board)

ASUS TUF PROTECTION


– ASUS SafeSlot: Protect your graphics card Investment

– ASUS ESD Guard: Enhanced ESD protection

– ASUS Overvoltage Protection: World-class circuit-protecting power design

– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

– ASUS DIGI+ VRM: Precision control for stable power

– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!


AURA :


– Aura Lighting Control

– Aura RGB Strip Headers

– Addressable Gen 2 Header


ASUS Exclusive Features

:

– AI Suite 3

– Ai Charger


ASUS Quiet Thermal Solution

:

– Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink

– ASUS Fan Xpert 4


ASUS EZ DIY :


– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode


ASUS Q-Design :


– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

– ASUS Q-Slot

– ASUS Q-DIMM


DIY Friendly Design


– Protocol

– SafeSlot

– Digi+ VRM

– Highly Durable components

– ESD Guards

1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x Optical S/PDIF out

5 x Audio jack(s)

4 x USB 3.2 Gen 1 (up to 5Gbps) ports

3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C

^TM

)

2 x Aura RGB Strip Header(s)

1 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x SPI TPM header

8 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

User’s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x TUF GAMING Sticker

1 x TUF Certification card(s)

256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Windows® 10 64-bit

ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
