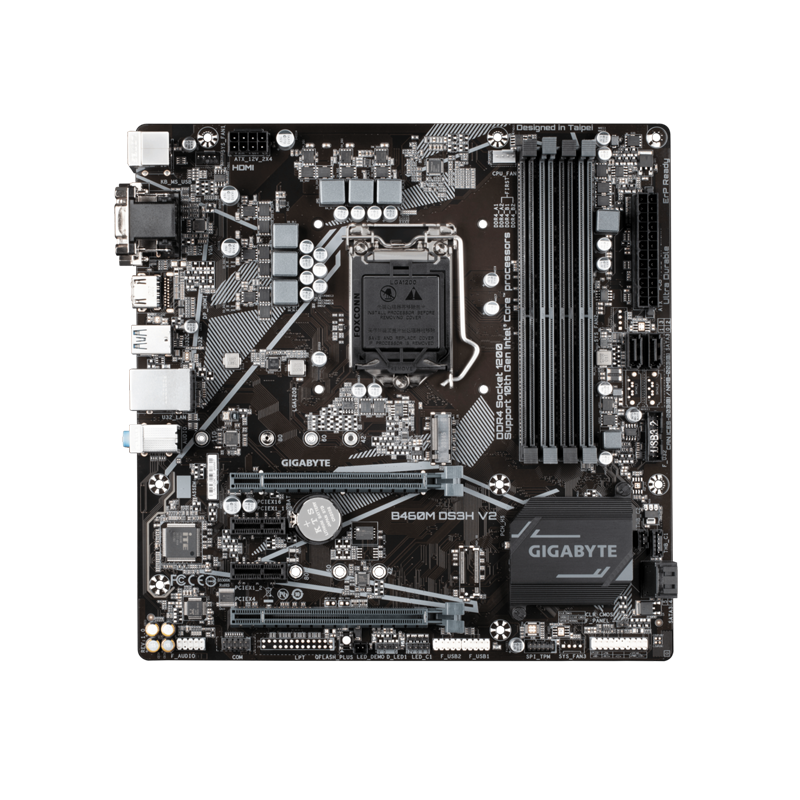

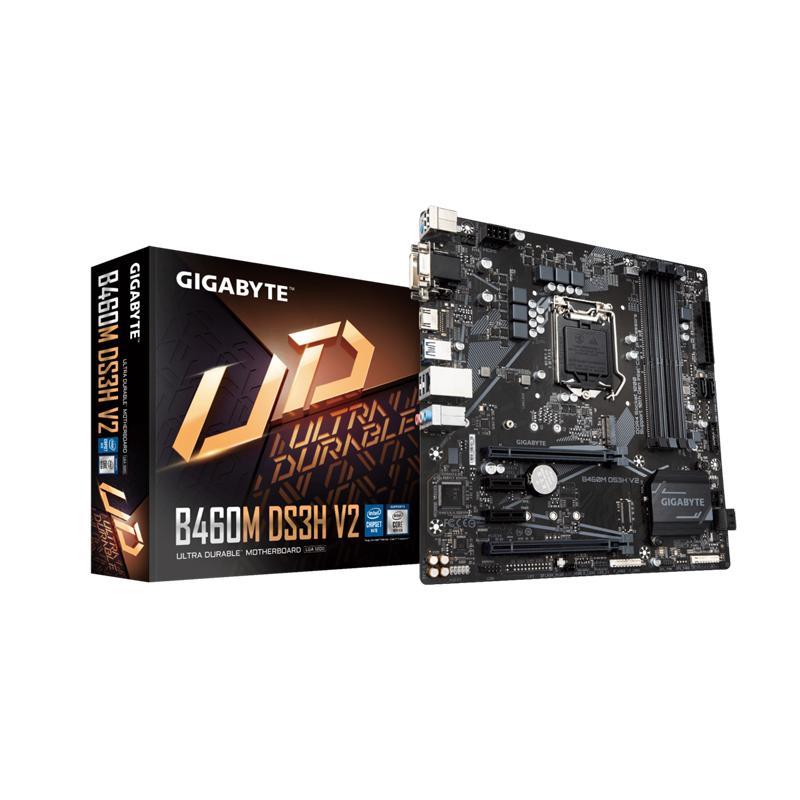

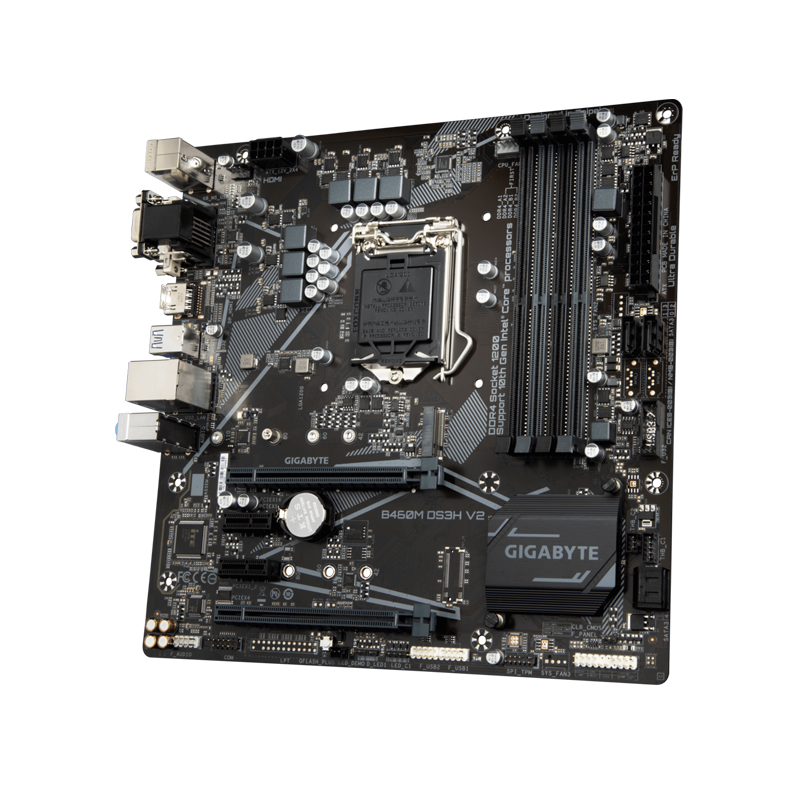

DESKTOP MOTHERBOARD - GIGABYTE 460M DS3H V2 (3y)
Sold Out
DESKTOP MOTHERBOARD - GIGABYTE 460M DS3H V2 (3y) - Image 2
DESKTOP MOTHERBOARD - GIGABYTE 460M DS3H V2 (3y) - Image 3
, ,

DESKTOP MOTHERBOARD – GIGABYTE 460M DS3H V2 (3y)

Availability:

Out of stock

Intel

®

Ultra Durable Motherboard with Intel

®

GbE with cFosSpeed, PCIe Gen3 x4 M.2,  HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, RGB FUSION 2.0

  • Supports 10th Gen Intel

    ®

    Core™ Processors and 11th Gen Intel

    ®

    Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • NVMe PCIe Gen3 X4 M.2 Connectors
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Intel

    ®

    Optane™ Memory Ready
  • Intel

    ®

    GbE LAN with cFosSpeed Internet Accelerator Software
  • 3 Display Interfaces Support
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Anti-Sulfur Resistors Design
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card

3 Years Warranty

Rs.25,000.00

or 3 X Rs.8,333.33 with Koko

Out of stock

Report Abuse

Reviews

There are no reviews yet

Add a review
DESKTOP MOTHERBOARD - GIGABYTE 460M DS3H V2 (3y) DESKTOP MOTHERBOARD - GIGABYTE 460M DS3H V2 (3y)
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
  • CPU
    1. Support for 10th Generation Intel

      ®

      Core™ i9 processors/Intel

      ®

      Core™ i7 processors/Intel

      ®

      Core™ i5 processors/Intel

      ®

      Core™ i3 processors/Intel

      ®

      Pentium

      ®

      processors/Intel

      ®

      Celeron

      ®

      processors in the LGA1200 package
    2. L3 cache varies with CPU
  • Chipset
    1. Intel

      ®

      H470 Express Chipset
  • Memory
    1. Intel

      ®

      Core™ i9/i7 processors:

      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    2. Intel

      ®

      Core™ i5/i3/Pentium

      ®

      /Celeron

      ®

      processors:

      Support for DDR4 2666/2400/2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual-channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics

    Integrated Graphics Processor-Intel

    ®

    HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

      * D-Sub port, supported by 10th Generation processors only.
    2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz

      * The DVI-D port does not support a D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

      * Support for HDMI 1.4 version and HDCP 2.3.

    Support up to three displays (limited to 10th Generation Intel processors only)

    Maximum shared memory of 512 MB

  • Audio
    1. Realtek

      ®

      Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel

      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • LAN
    1. Intel

      ®

      GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 2 x PCI Express x1 slots

      (All of the PCI Express slots conform to PCI Express 3.0 standard.)

    Supports up to ASPM L1.2 power management protocols.

  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    1. 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

      * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

    Intel

    ®

    Optane™ Memory Ready

    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

  • USB

    Chipset:

    1. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x RGB LED strip headers
    5. 4 x SATA 6Gb/s connectors
    6. 1 x M.2 Socket 3 connector
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 2 x serial port headers
    13. 1 x parallel port header
    14. 1 x Clear CMOS jumper
    15. 1 x Q-Flash Plus button
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 3 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks
  • I/O Controller
    1. iTE

      ®

      I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control

      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
