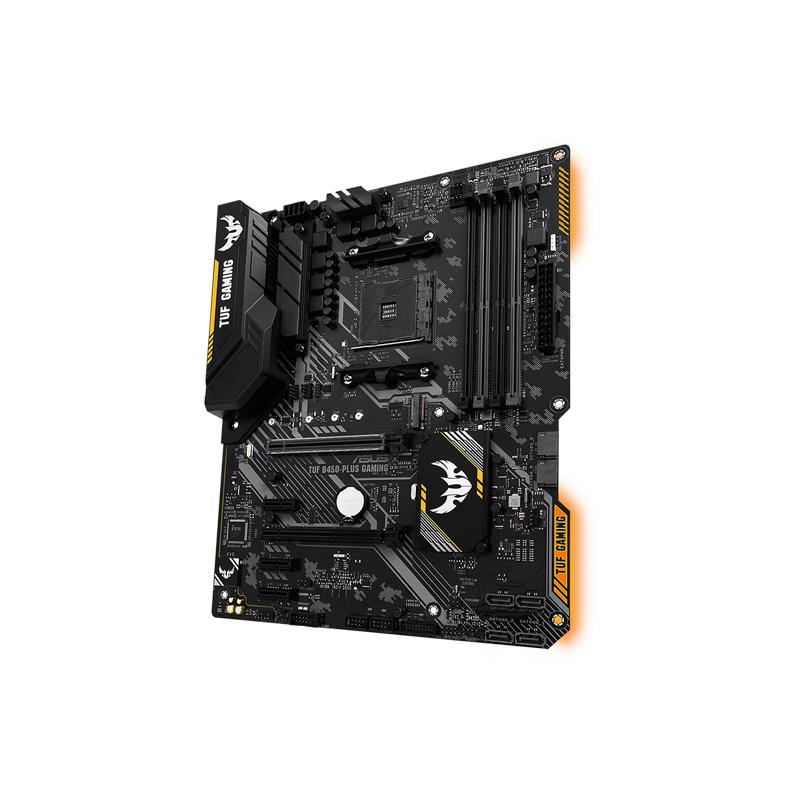

GAMING MOTHERBOARD – ASUS AMD TUF B450-PLUS (3y)

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

AMD B450

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors


4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Multi-VGA output support : HDMI/DVI-D ports

– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX™ Technology

3rd/2nd/1st Gen AMD Ryzen™ Processors


1 x PCIe 3.0/2.0 x16 (x16 mode)


2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors


1 x PCIe 3.0/2.0 x16 (x8 mode)


AMD Athlon™ with Radeon™ Vega Graphics Processors


1 x PCIe 3.0/2.0 x16 (x4 mode)


AMD B450 chipset


1 x PCIe 2.0 x16 (max at x4 mode)

3 x PCIe 2.0 x1

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :


1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

¹



AMD Athlon™ with Radeon™ Vega Graphics Processors :


1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*

¹



3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :


2 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10


AMD B450 chipset :


4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Realtek® RTL8111H

TUF LANGuard

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *

²



Audio Feature :


– Exclusive DTS Custom for GAMING Headsets.

– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

– Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :


2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)


3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :


1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-C

^TM

)


AMD B450 chipset :


2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)


AMD B450 chipset :


2 x USB 3.1 Gen 1 port(s) (2 at mid-board)


AMD B450 chipset :


6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

ASUS TUF PROTECTION


– ASUS SafeSlot: Protect your graphics card Investment

– ASUS ESD Guard: Enhanced ESD protection

– ASUS Overvoltage Protection: World-class circuit-protecting power design

– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

– ASUS DIGI+ VRM: Precision control for stable power


AURA :


– Aura Lighting Control

– Aura RGB Strip Headers


ASUS Exclusive Features

:

– AI Suite 3

– Ai Charger

– PC Cleaner

– File Transfer


ASUS Quiet Thermal Solution

:

– Stylish Fanless Design Heat-sink solution & MOS Heatsink

– ASUS Fan Xpert 4 Core


ASUS EZ DIY :


– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode


ASUS Q-Design :


– ASUS Q-Shield

– ASUS Q-Slot

– ASUS Q-DIMM


Overclocking Protection :


– ASUS C.P.R.(CPU Parameter Recall)

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x HDMI

1 x LAN (RJ45) port(s)

1 x 5Gb/s port(s) USB Type-C

^TM


2 x USB 3.1 Gen 2 (teal blue)Type-A,

2 x USB 3.1 Gen 1 (blue) Type-A

2 x USB 2.0

3 x Audio jack(s)

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x COM port header

User’s manual

ASUS Q-Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x TUF GAMING Sticker

1 x TUF Certification card(s)

128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Windows® 10 64-bit

Windows® 7 64-bit *

³

ATX Form Factor

12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
