GAMING MOTHERBOARD - GIGABYTE AORUS Z490 (3y)
Sold Out

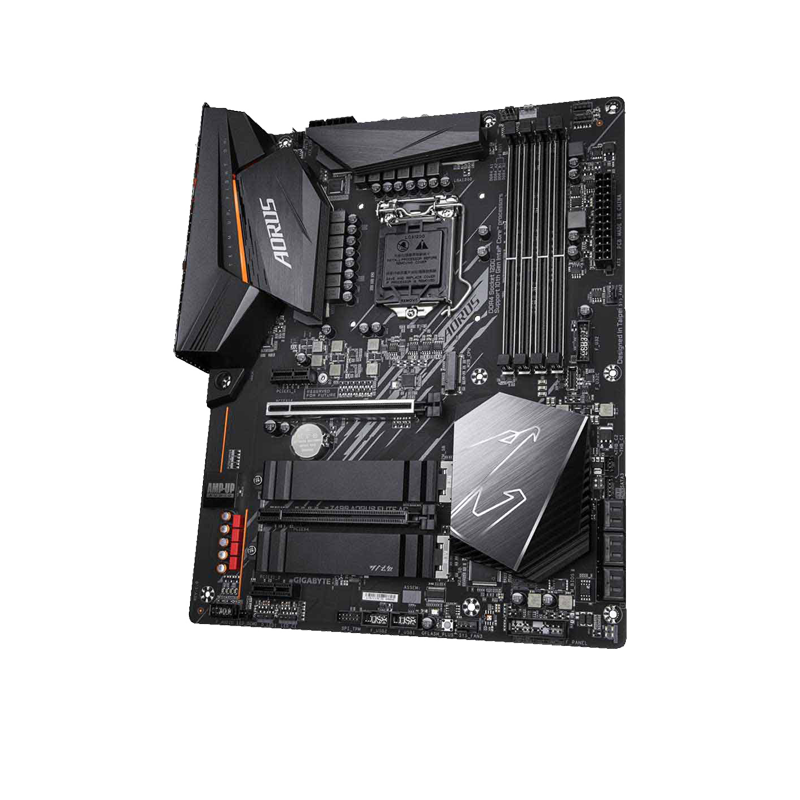

GAMING MOTHERBOARD - GIGABYTE AORUS Z490 (3y) - Image 2
, , ,

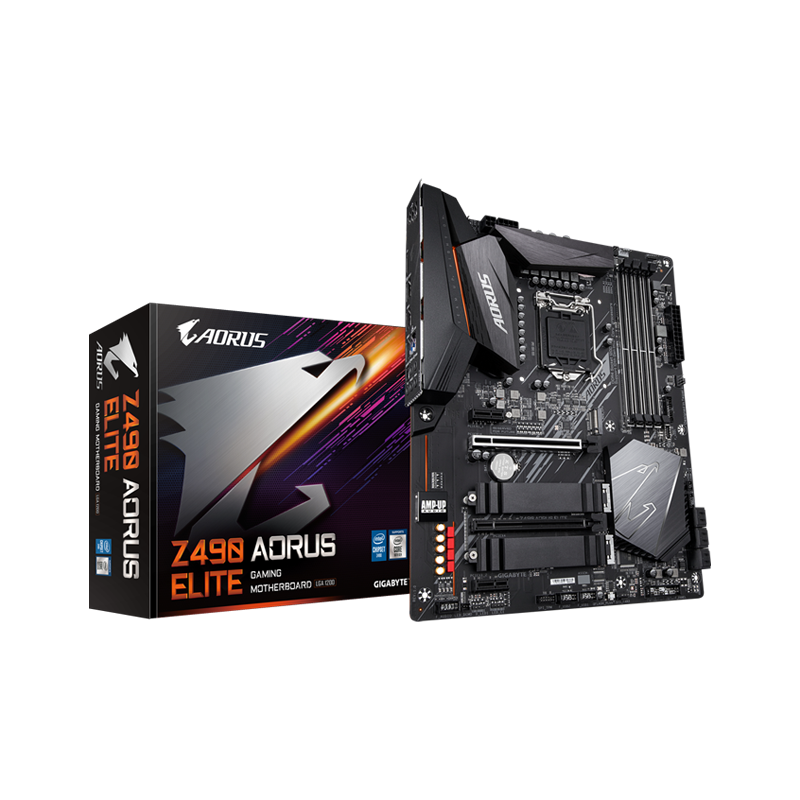

GAMING MOTHERBOARD – GIGABYTE AORUS Z490 (3y)

Availability:

Out of stock

Intel

®

Z490 AORUS Motherboard with Direct 12+1 Phase Digital VRM Design, Comprehensive Thermal Solution with Enlarged Surface Heatsink, 2.5GbE LAN, RGB FUSION 2.0

  • Supports 10th Gen Intel

    ®

    Coreâ„¢ Processors and 11th Gen Intel

    ®

    Coreâ„¢ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel

    ®

    Optaneâ„¢ Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Advanced Thermal Design with Enlarged Surface Heatsink
  • AMP-UP Audio with ALC1200 and WIMA Audio Capacitors
  • Fast 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
  • Pre-installed IO Shield for Easy and Quick Installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

3 Years Warranty

Rs.47,000.00

or 3 X Rs.15,666.67 with Koko

Out of stock

Report Abuse

Reviews

There are no reviews yet

Add a review
GAMING MOTHERBOARD - GIGABYTE AORUS Z490 (3y) GAMING MOTHERBOARD - GIGABYTE AORUS Z490 (3y)
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
    • CPU
      1. Support for 10th Generation Intel

        ®

        Coreâ„¢ i9 processors/Intel

        ®

        Coreâ„¢ i7 processors/Intel

        ®

        Coreâ„¢ i5 processors/Intel

        ®

        Coreâ„¢ i3 processors/Intel

        ®

        Pentium

        ®

        processors/Intel

        ®

        Celeron

        ®

        processors in the LGA1200 package
      2. L3 cache varies with CPU
    • Chipset
      1. Intel

        ®

        Z490 Express Chipset
    • Memory
      1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
      2. Dual channel memory architecture
      3. Intel

        ®

        Coreâ„¢ i9/i7 processors:

        Support for DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
      4. Intel

        ®

        Coreâ„¢ i5/i3/Pentium

        ®

        /Celeron

        ®

        processors:

        Support for DDR4 2666/2400/2133 MHz
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. Support for Extreme Memory Profile (XMP) memory modules
    • Onboard Graphics

      Integrated Graphics Processor-Intel

      ®

      HD Graphics support:

      1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz

        * Support for HDMI 1.4 version and HDCP 2.3.

      Maximum shared memory of 512 MB

    • Audio
      1. Realtek

        ®

        ALC1200 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Realtek

        ®

        2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 2 x PCI Express x1 slots

        (All of the PCI Express slots conform to PCI Express 3.0 standard.)

      Supports up to ASPM L1.2 power management protocols.

    • Multi-Graphics Technology
      1. Support for AMD Quad-GPU CrossFireâ„¢ and 2-Way AMD CrossFireâ„¢ technologies
    • Storage Interface
      1. 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_SB/M2A_SB)
      2. 6 x SATA 6Gb/s connectors
      3. Support for RAID 0, RAID 1, RAID 5, and RAID 10

        * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
      4. Intel

        ®

        Optaneâ„¢ Memory Ready

      M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

    • USB

      Chipset:

      1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
      2. 1 x USB Type-Câ„¢ port with USB 3.2 Gen 1 support, available through the internal USB header
      3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

      Chipset+2 USB 2.0 Hubs:

      1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x 4-pin ATX 12V power connector
      4. 2 x M.2 Socket 3 connectors
      5. 6 x SATA 6Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x water cooling CPU fan header
      8. 3 x system fan headers
      9. 2 x addressable LED strip headers
      10. 2 x RGB LED strip headers
      11. 1 x front panel header
      12. 1 x front panel audio header
      13. 1 x USB Type-Câ„¢ port, with USB 3.2 Gen 1 support
      14. 1 x USB 3.2 Gen 1 header
      15. 2 x USB 2.0/1.1 headers
      16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      17. 2 x Thunderboltâ„¢ add-in card connectors
      18. 1 x Clear CMOS jumper
      19. 1 x Q-Flash Plus button
    • Back Panel Connectors
      1. 2 x USB 3.2 Gen 2 Type-A ports (red)
      2. 4 x USB 3.2 Gen 1 ports
      3. 4 x USB 2.0/1.1 ports
      4. 1 x HDMI port
      5. 1 x RJ-45 port
      6. 1 x optical S/PDIF Out connector
      7. 5 x audio jacks
    • I/O Controller
      1. iTE

        ®

        I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Overheating warning
      6. Fan fail warning
      7. Fan speed control

        * Whether the fan speed control function is supported will depend on the fan you install.
    • BIOS
      1. 1 x 256 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features
    • Unique Features
      1. Support for APP Center

        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

        @BIOS

        EasyTune

        Fast Boot

        Game Boost

        ON/OFF Charge

        RGB Fusion

        Smart Backup

        System Information Viewer
      2. Support for Q-Flash Plus
      3. Support for Q-Flash
      4. Support for Xpress Install
    • Bundled Software
      1. Norton

        ®

        Internet Security (OEM version)
      2. Realtek

        ®

        8125 Gaming LAN Bandwidth Control Utility
    • Operating System
      1. Support for Windows 10 64-bit
    • Form Factor
      1. ATX Form Factor; 30.5cm x 24.4cm
