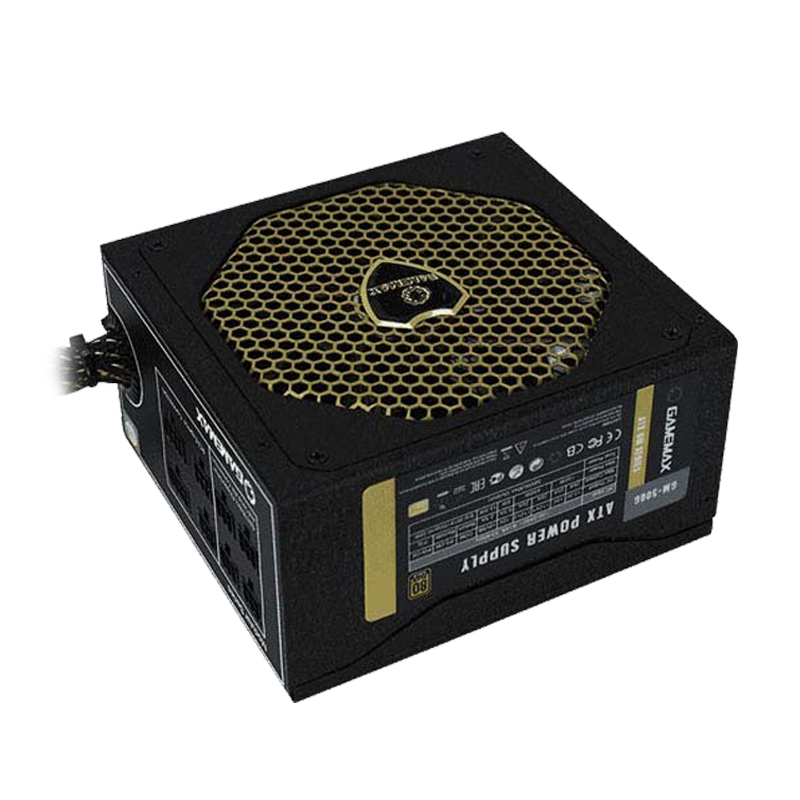

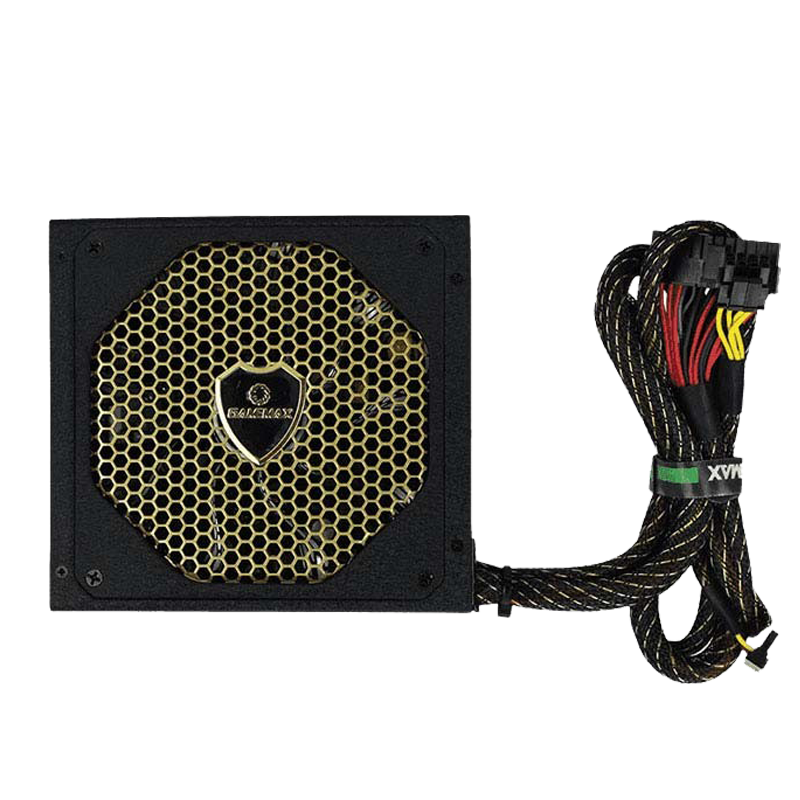

POWER SUPPLY – GAMEMAX GM-500G (500W)
M 500G
GameMax Semi-Modular Series is a semi-Modular PSU with a compact and quiet engineering, with semi-modular cables for easy maintenance, allowing you to only connect cables that your system needs. Fewer cables allows it to be tidy and better airflow inside your case. High 80 Plus efficiency, reduced ripple and electrical instabilities and better efficiency and protection gives the user durability and total confidence in your next system build. 100% 6th Generation Skylake Ready!
- PSU Type： ATX
- Cabling： Semi-Modular
- Efficiency： 90+ Gold
1 Year Warranty
Rs.15,900.00
POWER SUPPLY - GAMEMAX GM-500G (500W)
| AC Input | 100-240VACÂ Â 8-4AÂ Â 60-50Hz | |||||
| Output Voltage | 3.3V | 5V | +12V1 | +12V2 | -12V | 5Vsb |
| Min. Output Current | 0.5A | 0.5A | 0.5A | 0.5A | 0A | 0.1A |
| Max. Output Current | 20A | 20A | 20A | 20A | 0.5A | 2.5A |
| Max. Combined Wattage | 100W | 450W | 6W | 12.5W | ||
| Total Continuous Wattage | 500W | |||||
| Output Voltage | MIN | Nominal | MAX | Units | Range |
| +5V | 4.75 | 5.00 | 5.25 | Volts | ±5% |
| +12V1/12V2 | 11.40 | 12.00 | 12.60 | Volts | ±5% |
| -12V | -10.80 | -12.00 | -13.20 | Volts | ±10% |
| +3.3V | 3.14 | 3.30 | 3.47 | Volts | ±5% |
| +5Vsb | 4.75 | 5.00 | 5.25 | Volts | ±5% |
| GM-500GÂ Efficiency | |||
| Loading | 100% | 50% | 20% |
| Efficiency | ≧87% | ≧90% | ≧87% |
| PFC | ≧0.9 | ||
|
Parameter |
R i pp l e + Noise |
Un i ts |
| +5V | 50 | mV |
| +12V1 | 120 | mV |
| +12V2 | 120 | mV |
| -12V | 120 | mV |
| +3.3V | 50 | mV |
| +5Vsb | 50 | mV |
7.
1Â Â Â Â Â Â Â Â Over Voltage Protection
The +5V/+12V/+3.3V DC output are protected against the over voltage condition. Maximum value can’t be over 6.5V at 5V terminal and 15.5V at
12V, 4.3V at 3.3V.
7.
2Â Â Â Â Â Â Â Â Over Power Protection
The power supply will be shutdown and latch off when output power is
110%~150%.
7.
3Â Â Â Â Â Â Â Â Under voltage protection
In an under voltage fault occurs, the supply will latch all DC outputs into a shutdown state when +12V,+5V & +3.3V outputs under 60% of it’s maximum value.
7.
4Â Â Â Â Â Â Â Â Short Circuit Protection
Short circuit placed on +5V,+12V,+3.3V,-12V will latch off. +5VSB will auto-recovery.
7.
5
Over-Current Protection
Current protection should be designed to limit the current to operate within safe operating conditions.
