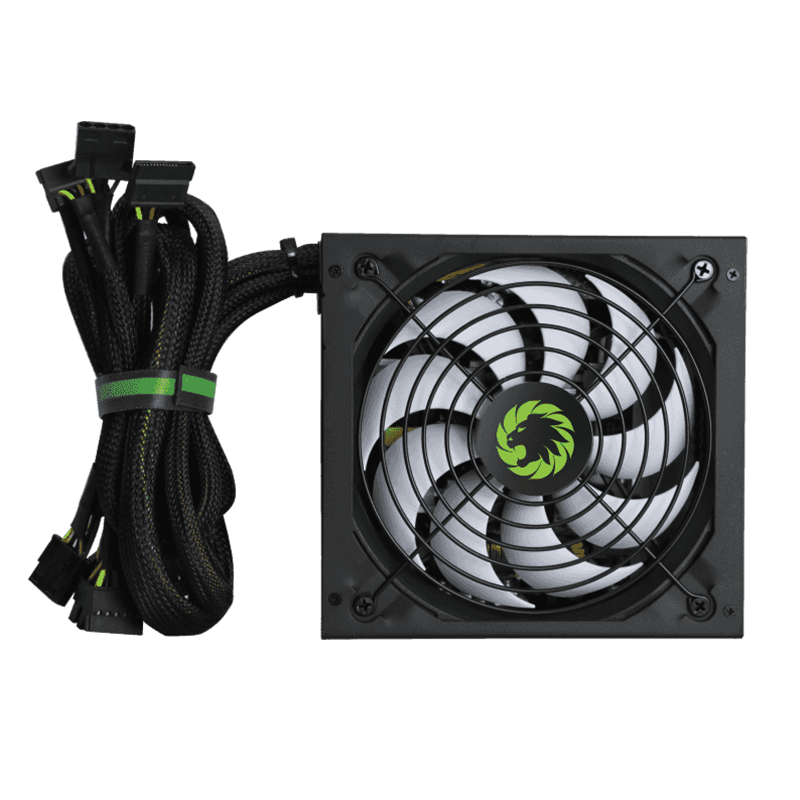

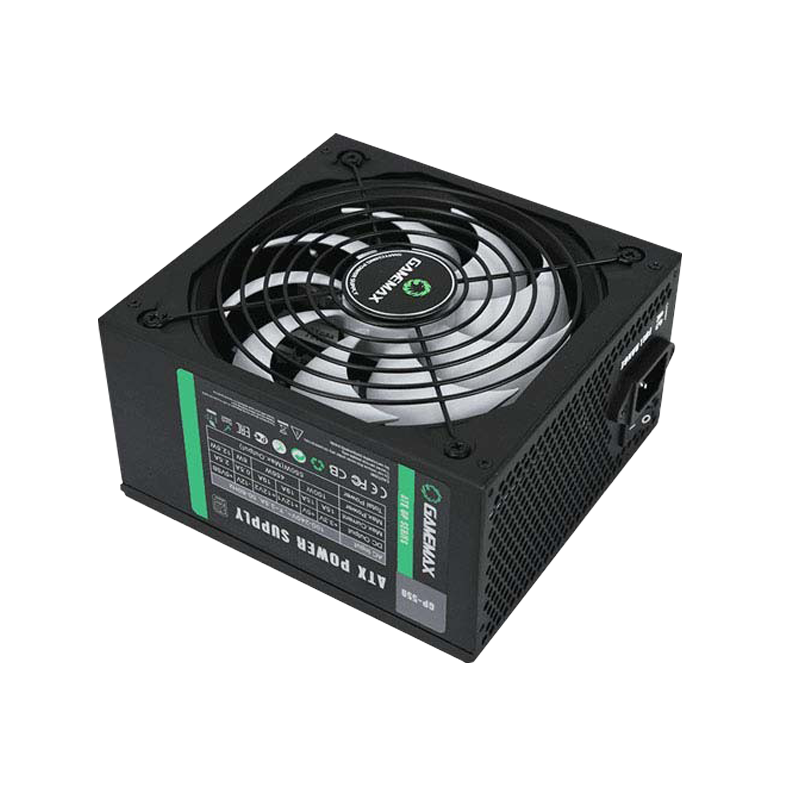

POWER SUPPLY – GAMEMAX GP-550 (550W)
Out of stock
GP-550
Game Max performance range power supplies are a great choice if you are building a home or office system as a mainstream model, there is a total of 5 Sata connectors for Raid storage and up to 85% efficiency for power saving and a single +12V rail for extreme CPU/GPU power consumption. Good DC quality with lower ripple and noise and fully protected functions are used to guard your components in the system. When installing there is no struggle with the longer 20 + 4 pin and 4 + 4 pin connectors measuring 550mm.
- PSU Type： ATX
- Cabling： Wired
- Efficiency： 85+ Bronze
1 Year Warranty
Rs.8,300.00
Out of stock
Report Abuse
POWER SUPPLY - GAMEMAX GP-550 (550W)
SPECIFICATION
PSU Specifications
| AC INPUT: 100-240 VAC 3.5-7A 50-60Hz | ||||||
|
DC Output Max |
+3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| 15A | 15A | 19A | 19A | 0.5A | 2.5A | |
| 550W | ||||||
Connectors
|
20+4 Pin Main Connectors:
1 |
|
4+4 Pin 12V Connectors:
1 |
|
SATA Connectors:
5 |
|
4-Pin Molex Connectors:
3 |
|
6+2 Pin PCI-e Connectors:
1 |
Detailed Specifications
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 3.5-7A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | > 81% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 550W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes – 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GP-550 |
| EAN Number: | 6931858720052 |
| Has Mains Plug: | No |
| Colour: | Black |
| What’s In The Box: |
Power Supply Screws Manual 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
| Packaging Dimensions (mm): | 300mm x 180mm x 115mm (W x H x D) |
| Net Weight (KGs): | 1.6 KGs |
| Gross Weight (KGs): | 2 KGs |
