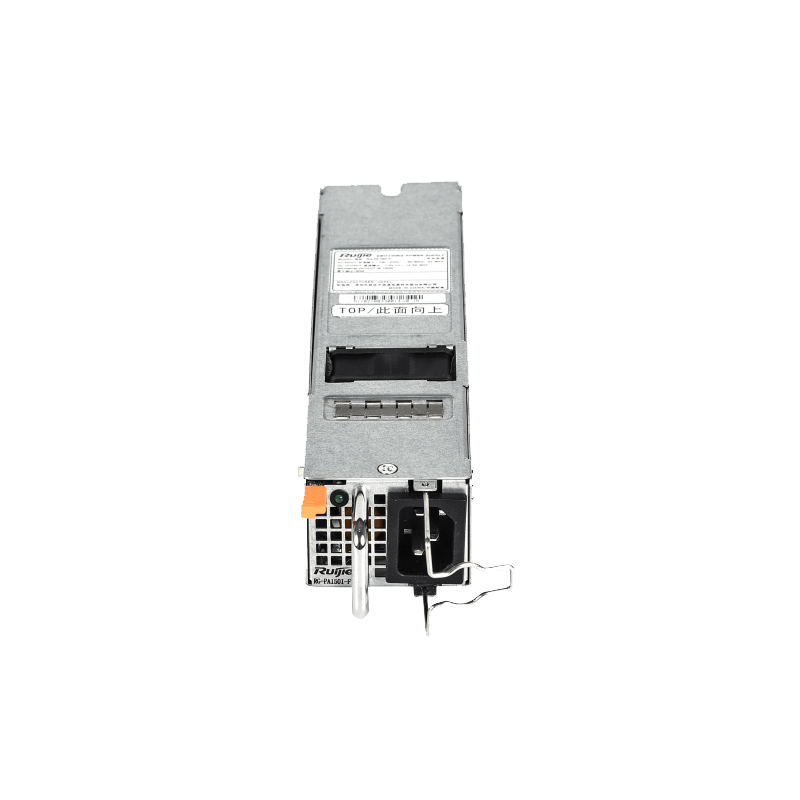

RUIJIE REYEE RG-PA150I-F 150W SWITCH POWER SUPPLY

Rated input voltage AC input

:

100V AC to 240V AC; 50 to 60Hz – HVDC input: 240V DC

Maximum input voltage AC input

:

90V AC to 290V AC; 47 to 63Hz – HVDC input: 192V DC to 288V DC

Maximum input current 3A

Input leakage current ≤3.5mA

Output voltage 12V

Maximum output current 12.5A

Maximum output power 150W

Dimensions (WxDxH) 196mm x 50.5mm x 40mm (7.72in. x 1.99in. x 1.57in.)

Weight Net weight

:

0.55kg (1.21lbs.)

Primary airflow Rear-to-front : Air intake from the connecting finger and air outlet from the front panel

Operating temperature -10°C to +55°C (14°F to 131°F)

Storage temperature -40°C to +70°C (-40°F to +158°F)

Operating humidity 5% to 95% (non-condensing)

Storage humidity 5% to 95% (non-condensing)

Operating altitude 0m to 5,000m (0ft. to +16404.20ft.)

Power cord requirement 10A power cord
